Thương Hiệu

ASUS

Model

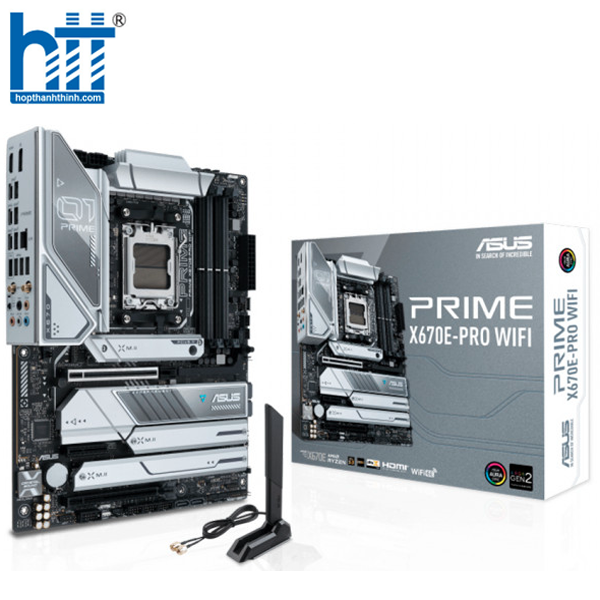

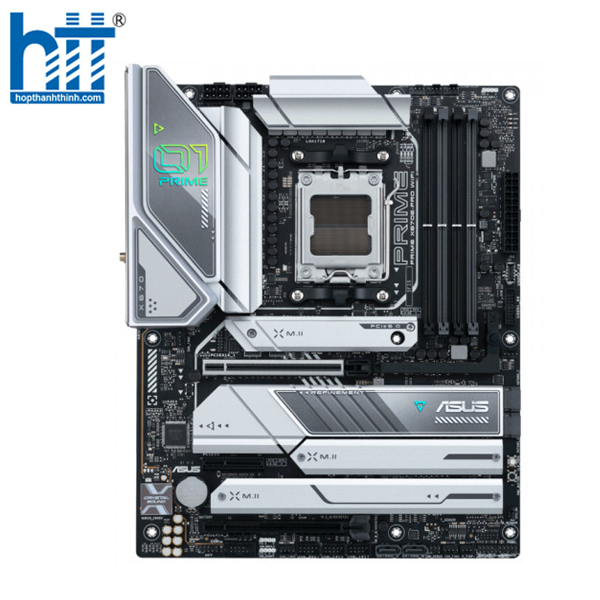

ASUS PRIME X670E-PRO WIFI

Kích Cỡ

ATX

CPU Socket

AM5

Chipset

X670

Số Khe Ram

4

Bus Ram Hỗ Trợ

DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory

Dung Lượng Ram Tối Đa Hỗ Trợ

128GB

PCI Express 3.0 x16

AMD Ryzen™ 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slots

Số Cổng SATA

4 x SATA 6Gb/s ports

M.2

Total supports 4 x M.2 slots

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Chip Xử Lý Âm Thanh

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Power pre-regulator reduces power input noise to ensure consistent performance

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

LAN Chipset

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

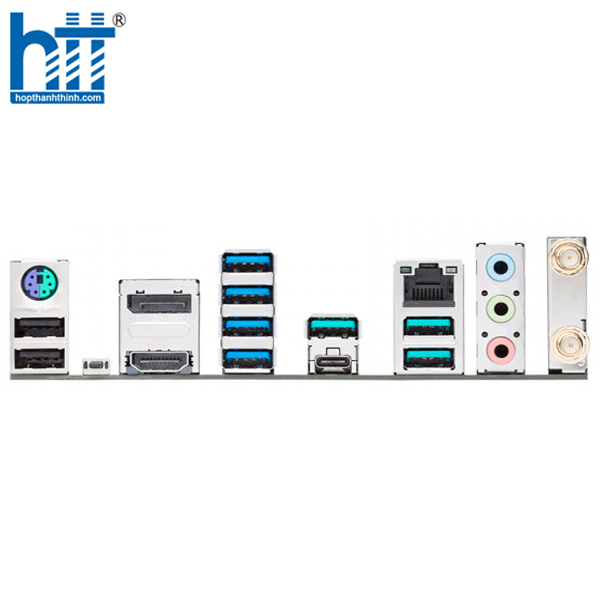

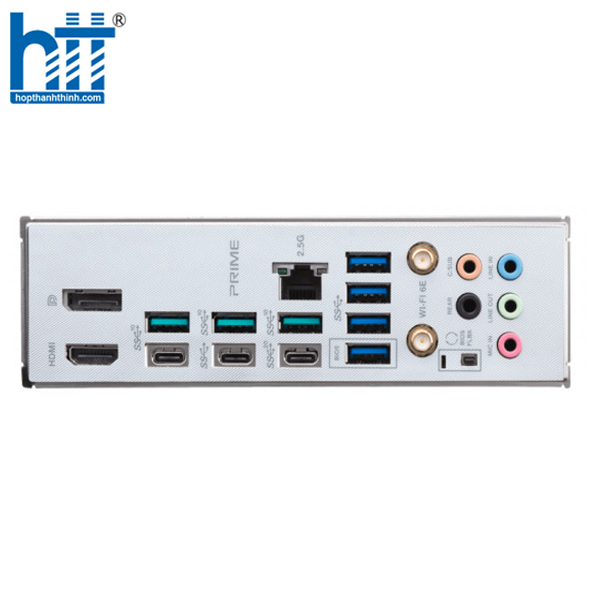

Cổng I/O Phía Sau

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)

5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Onboard USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Cổng Kết Nối Khác

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

2 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™  header

Kích Thước (W x L)

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Chân Cắm Nguồn

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors
