Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

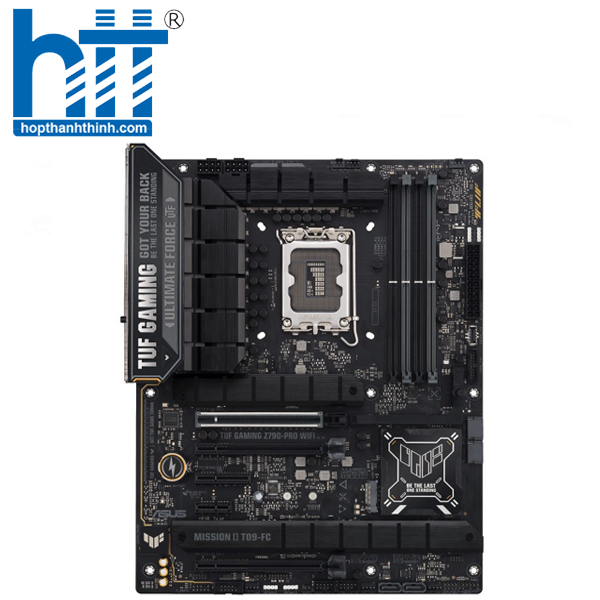

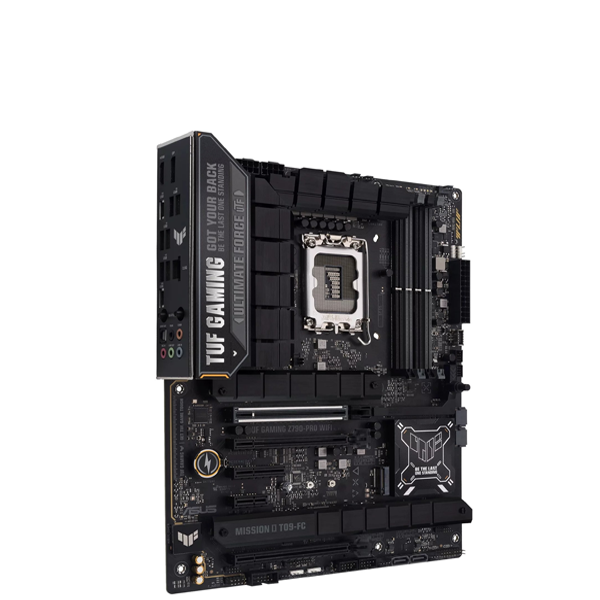

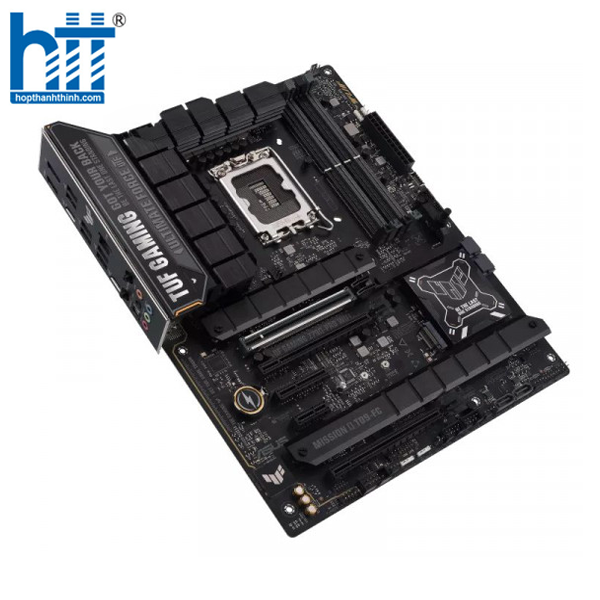

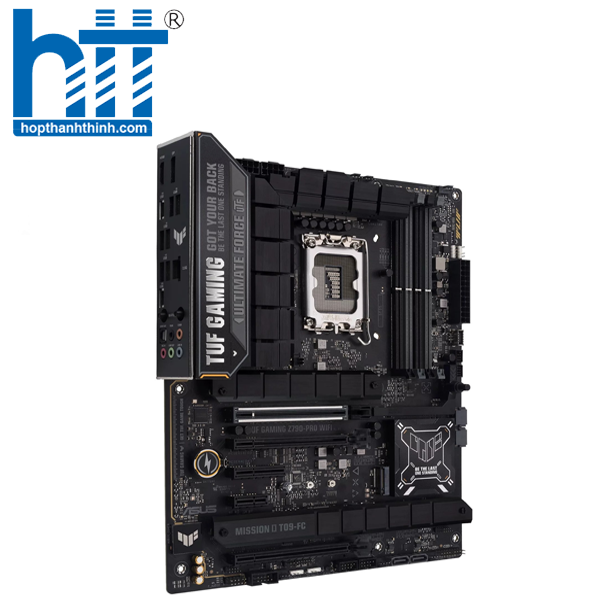

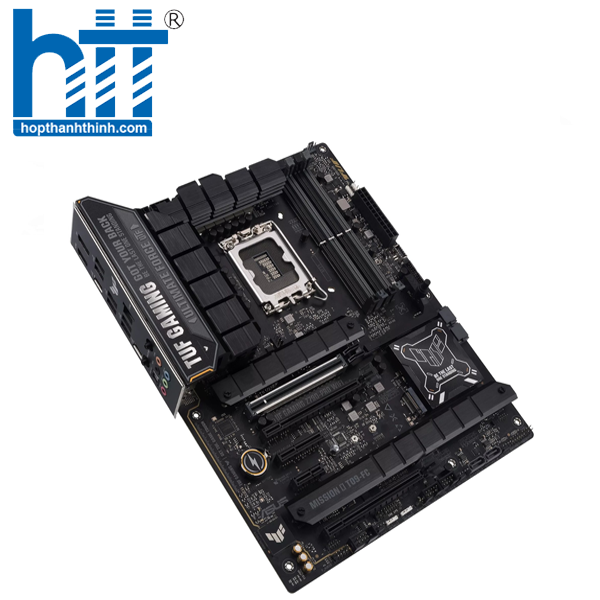

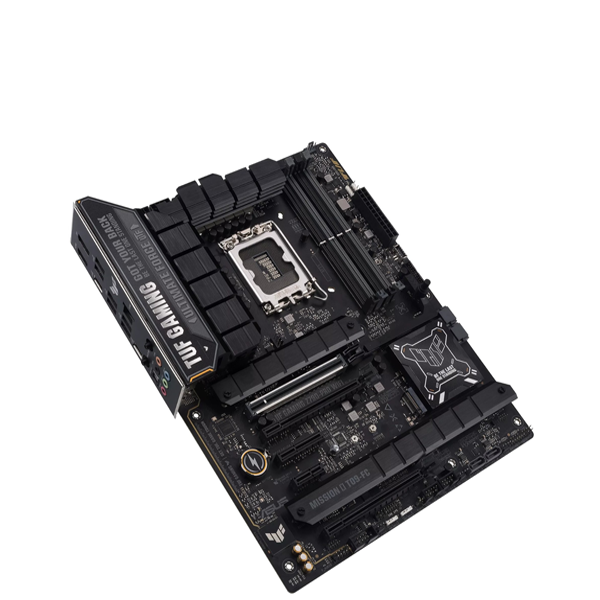

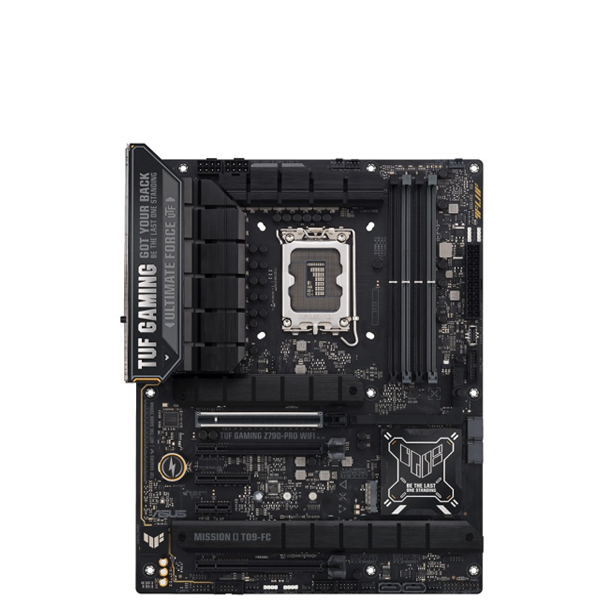

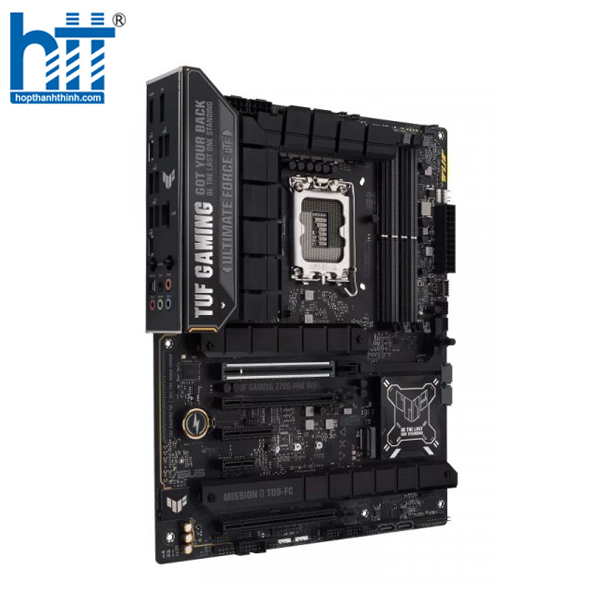

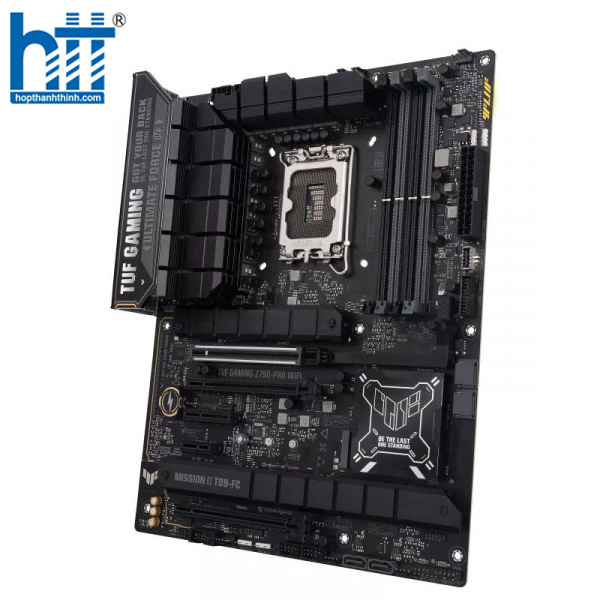

TUF GAMING Z790-PRO WIFI

CPU hỗ trợ

Intel

Chipset

Intel Z790 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel^® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

Khe cắm mở rộng

Intel^® Core™ Processors(Next-Gen & 13^th & 12^th )*
1 x PCIe 5.0 x16 slot
Intel^® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x16 slot (supports x1 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Ổ cứng hỗ trợ

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Processors(Next-Gen & 13th & 12th )*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel^® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin main power connector
2 x 8-pin +12V power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM port header
1 x Front panel audio header (F_AUDIO)
1 x 20-3 pin system panel header with chassis intrusion function
1 x Thunderbolt™ (USB4^®) header

Cổng kết nối (Back Panel)

1 x USB 20Gbps port (1 x USB Type-C^®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C^®)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^TM port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

LAN / Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth^® v5.3**
* Wi-Fi 6GHz frequency band regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Kích cỡ

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
