Loại sản phẩm

Mainboard

Thương hiệu

GIGABYTE AORUS

Model

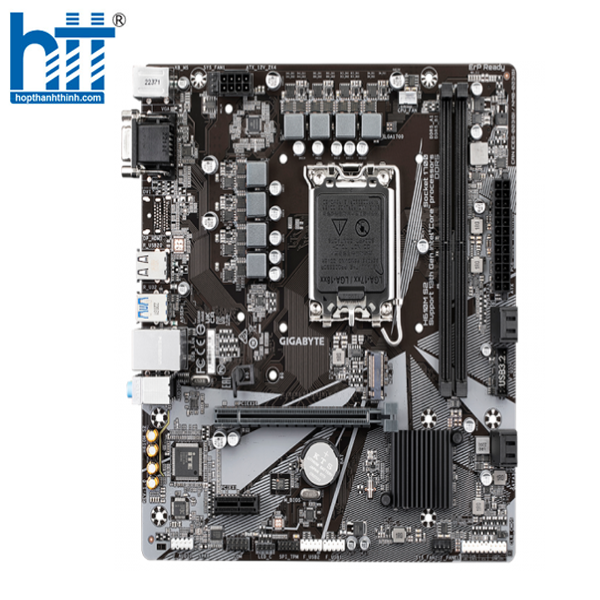

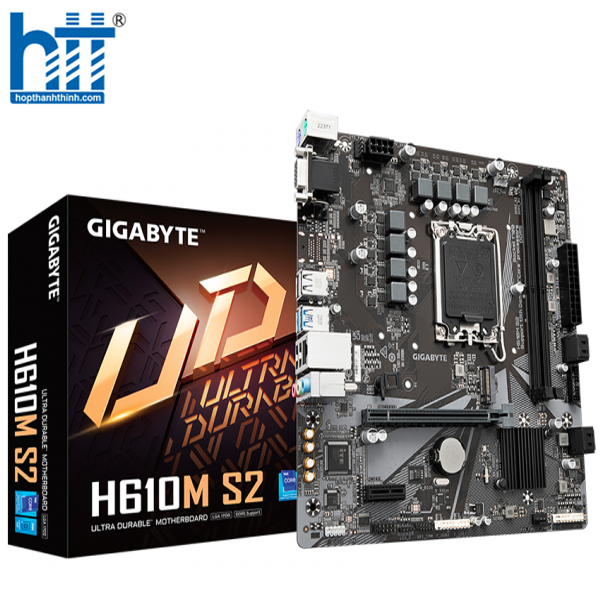

H610M S2

Chipset

Intel® H610

Hỗ trợ socket

Intel LGA 1700

Memory

13th Generation Intel® Core™ i9/i7 processors:

Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:

Support for DDR5 4800/4400 MT/s memory modules

2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Ethernet

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slot

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

USB

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

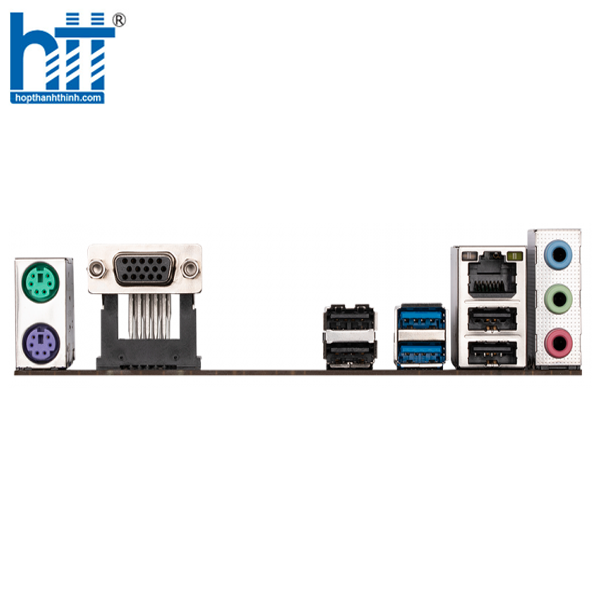

Back Panel I/O Ports

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Operating System

Windows® 11, Windows® 10 64-bit

Kích thước

Micro ATX Form Factor; 23.0cm x 21.5cm
