Socket

LGA1700

Chipset

Intel® B760 Express Chipset

CPU (hỗ trợ tối đa)

Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS hỗ trợ

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm

Bộ Nhớ

Bộ nhớ RAM tối đa

128 GB

Số khe cắm

4

Kênh bộ nhớ

Dual

RAM

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

Đồ Họa và Âm Thanh

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Kết Nối Mạng

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Bluetooth

BLUETOOTH 5.2

Kết nối Wireless

AMD Wi-Fi 6E RZ608 (MT7921K)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

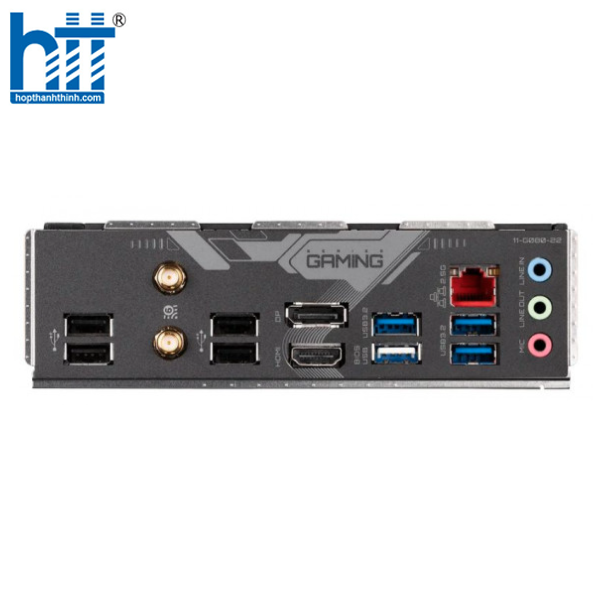

Cổng Kết Nối

Các cổng khác

2 x SMA antenna connectors (2T2R)

RJ45

1 x RJ-45 port

USB 2.0

5 x USB 2.0/1.1 ports

USB 3.2

1 x USB 3.2 Gen 2 Type-A port (red)

2 x USB 3.2 Gen 1 ports

Cổng Audio

6 x audio jacks

HDMI

1 x HDMI 2.0

Display Port

1 x DisplayPort 1.2

Kết Nối I/O Bên Trong

SATA III 6Gb/s

4 x SATA 6Gb/s connectors

M.2 SLOT

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

PCI-EX1

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

PCI-EX16

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Tính Năng Khác

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring (Bộ theo dõi phần cứng)

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Tính năng đặc biệt khác

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
