Loại sản phẩm

Mainboard

Thương hiệu

Gigabyte

Model

TRX40 DESIGNARE

Bảo hành

36 tháng

CPU

AMD Socket sTRX4:

Support 3rd Generation AMD Ryzen™ Threadripper™ processors

Chipset

AMD TRX40

Bộ nhớ

8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory

Quad Channel memory architecture

Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Âm thanh

(For PCB rev1.1 / 1.2) Realtek® ALC4050H codec+ ALC1220-VB codec

(For PCB rev1.3) Realtek® ALC4080 Audio CODEC

Support for DTS:X® Ultra

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

2 x Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Intel® Wi-Fi 6 AX200

Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.0

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Khe cắm mở rộng

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

1 x PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 4.0 standard.)

Công nghệ đa card đồ họa

Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies

Giao diện lưu trữ

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)

8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x OC_PEG power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

4 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ header, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x power button

1 x reset button

2 x temperature sensor headers

1 x Clear CMOS jumper

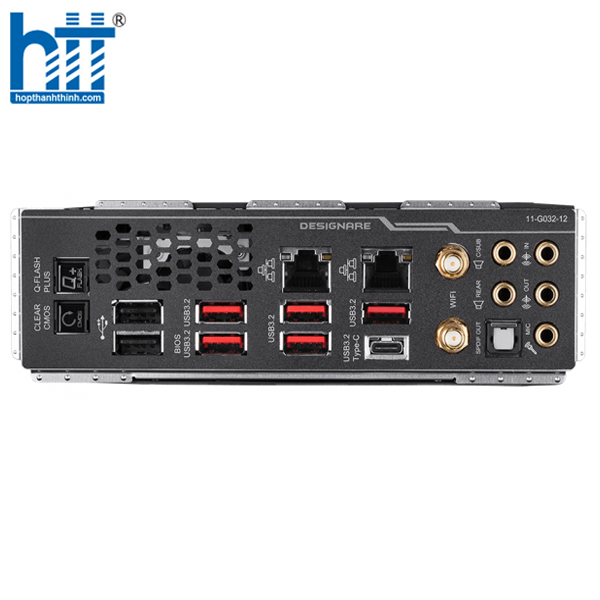

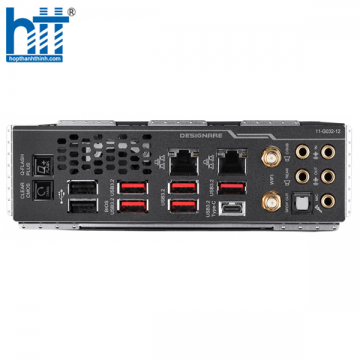

Kết nối bảng phía sau

1 x Q-Flash Plus button

1 x Clear CMOS button

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

5 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB 2.0/1.1 ports

2 x RJ-45 ports

2 x SMA antenna connectors (2T2R)

1 x optical S/PDIF Out connector

5 x audio jacks

Điều khiển I/O

iTE® I/O Controller Chip

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hệ điều hành

Support for Windows 10 64-bit

Hệ số khuôn

XL-ATX Form Factor; 32.5cm x 26.9cm
