Loại sản phẩm

Mainboard

Thương hiệu

Gigabyte

Model

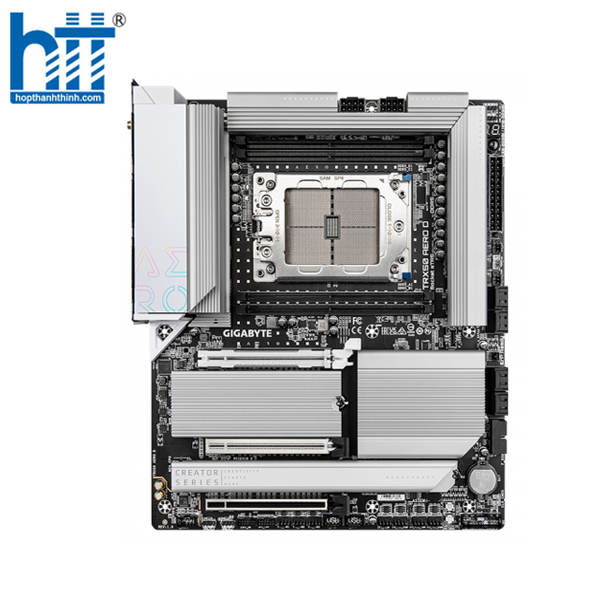

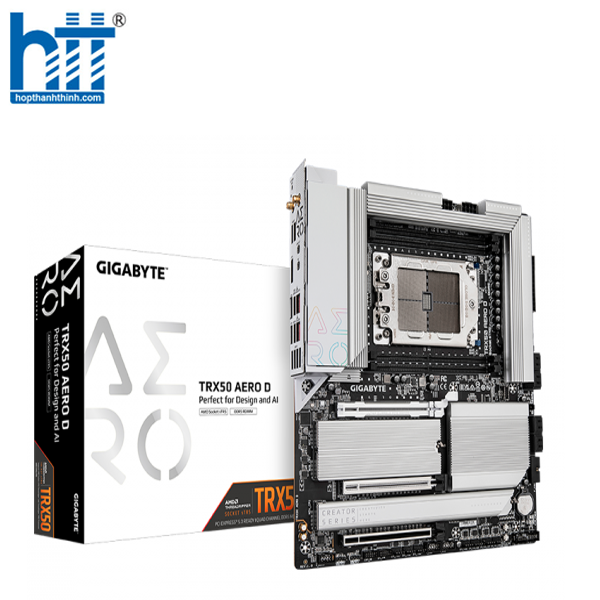

TRX50 AERO D

Bảo hành

36 tháng

CPU

AMD Socket sTR5, support for:

AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD TRX50

Bộ nhớ

Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)

4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory

Quad channel memory architecture

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Âm thanh

Realtek® ALC4080 CODEC (rear panel audio)

- Support for DTS:X® Ultra

- High Definition Audio

- 2-channel

Realtek® ALC897 CODEC (front panel audio)

LAN

Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)

Wireless Communication module

Qualcomm® Wi-Fi 7 QCNCM865

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Note:

Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)

Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.

Khe cắm mở rộng

CPU:

- 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Công nghệ đa card đồ họa

N/A

Giao diện lưu trữ

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)

CPU+Chipset:

- 8 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel® JHL8540 USB4® controller:

- 2 x USB4® USB Type-C® ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

CPU+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

4 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x power button

1 x Clear CMOS button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

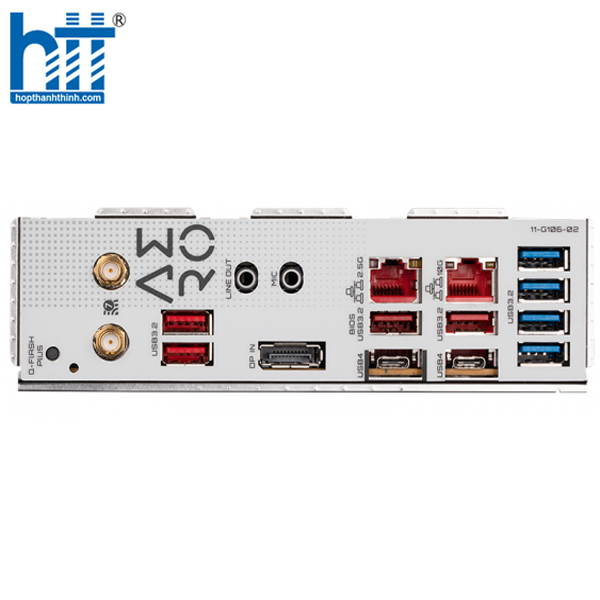

Kết nối bảng phía sau

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x DisplayPort In port

1 x USB4® USB Type-C® port (DisplayPort)

1 x USB4® USB Type-C® port

4 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

2 x RJ-45 ports

2 x audio jacks

Điều khiển I/O

iTE® I/O Controller Chip

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hệ điều hành

Support for Windows 11 64-bit

Hệ số khuôn

E-ATX Form Factor; 30.5cm x 26.4cm
